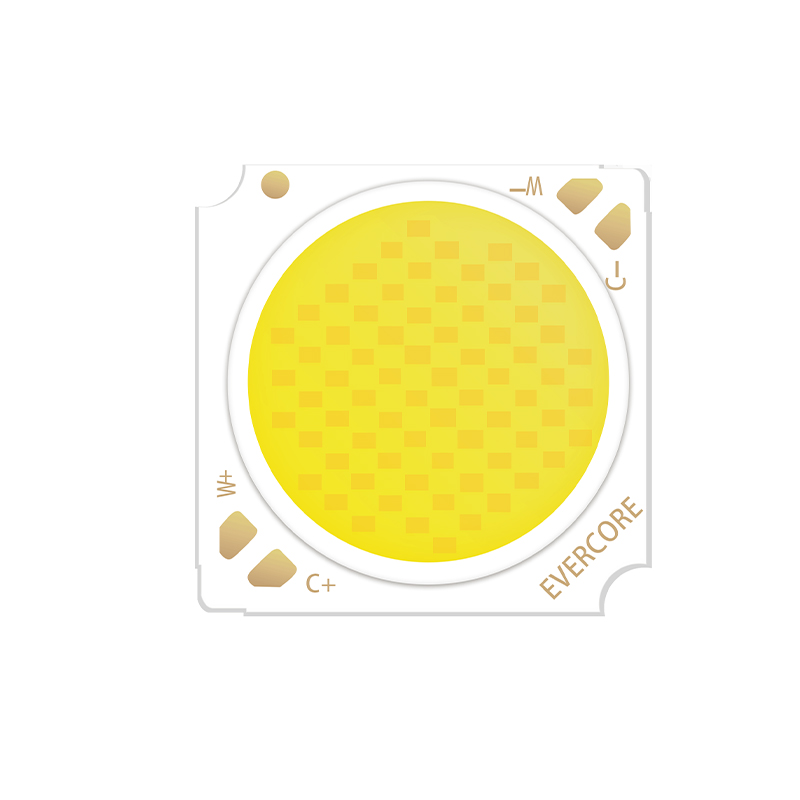

CK1917-YV3

Product Features:

1、LM-80 certified
2、CCT Tunable range options: 2700-6000K;1800-4000K;2700-4000K;2700-5000K
3、Ra＞90
4、Efficiency: 120lm/W
5、Uniform distribution, color spot perfectly fitting along BBL
6、Smooth light brightness and color temperature adjustment

Product application:

High-end hotels,
Smart homes,
High-end commercial space
......

Product Introduction

Related recommendations

Model Number	LES (mm)	Power (W)	Current Typ (mA)	Current Max (mA)	Voltage (V)	CCT (K)	CRI （Ra）	Efficiency (lm/W)
CK1917-0812 J24WLSH-YV3	Φ15	24	640	800	36	2700	≥90	105
CK1917-0812 J24WLSH-YV3		24	640	800	36	6000	≥90	120
CK1917-1212 J36WLSH-YV3		36	960	1200	36	2700	≥90	105
CK1917-1212 J36WLSH-YV3		36	960	1200	36	6000	≥90	120
