Evercore CCT Tunable COB Series Special Topic

Key applications of commercial lighting

—— Brightness, color temperature, color, beam focusing

>>>>>>>>>>>>

● Commercial lighting is both a science and an art；

● Different light color characteristics and lighting designs will lead to  different lighting effects ；

● Different lighting effectsprovoke different psychological feelings of customers, thereby affecting their shopping behavior；

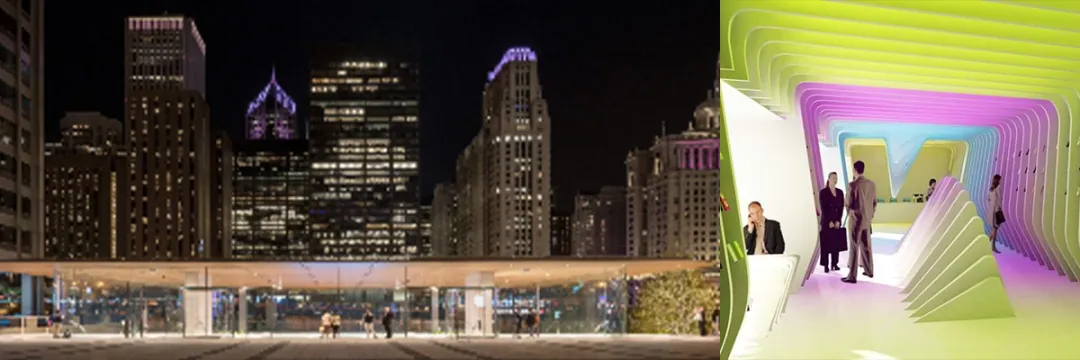

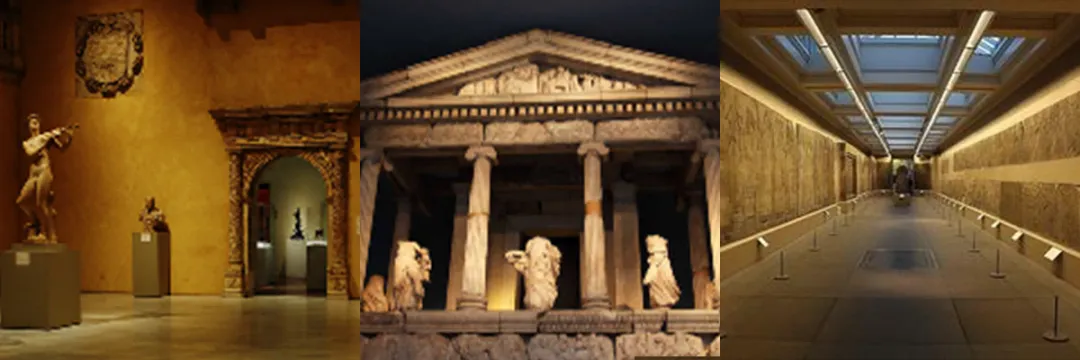

Applications of CCT Tunable COB products in Museum Lighting

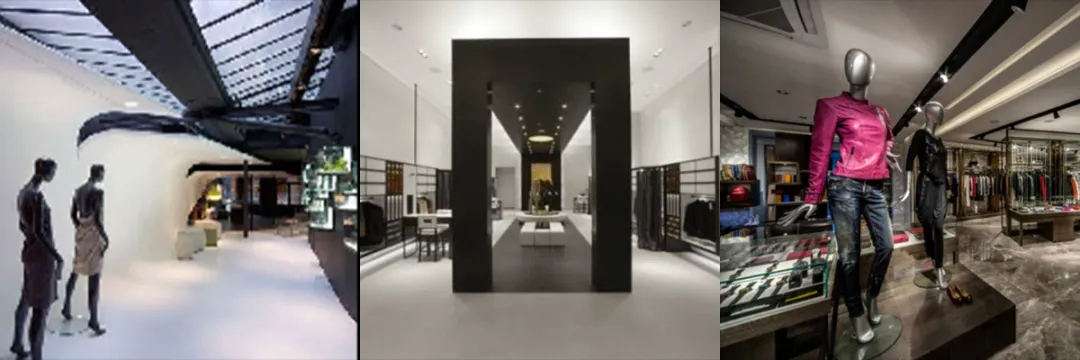

Applications of CCT Tunable COB products in Clothing chain lighting

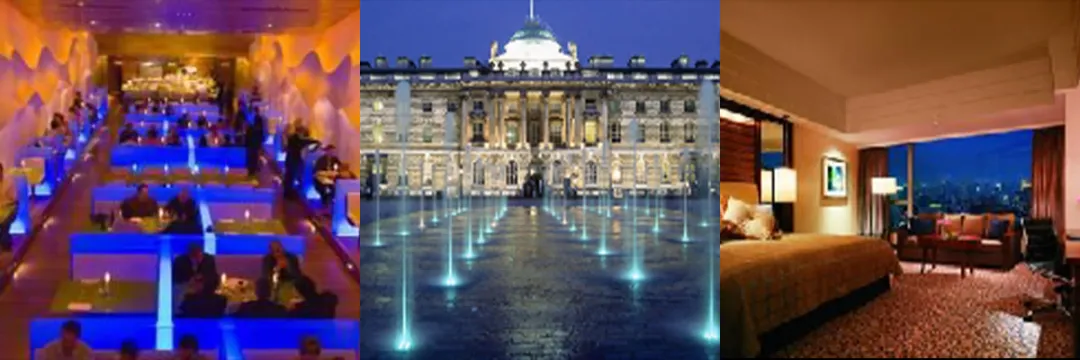

Applications of CCT Tunable COB products in Hotel Lighting

Applications of CCT Tunable COB products in Fashionable Technology Lighting

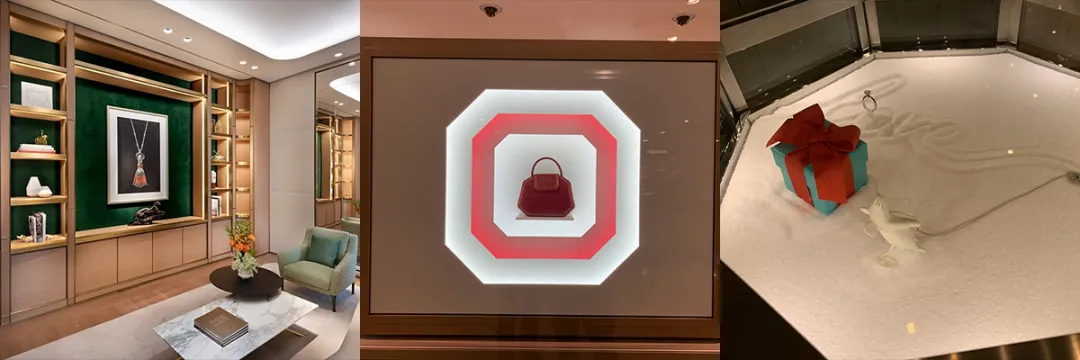

Applications of CCT Tunable COB products in Luxury Lighting

The most crucial aspect of commercial lighting is to achieve a high degree of integration in the overall space through the application of various display methods and lighting effects.

Key Applications for Lighting - Brightness

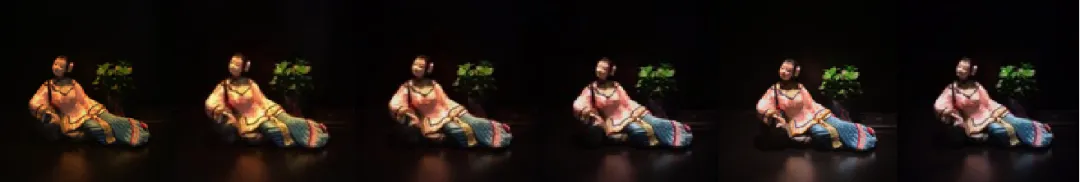

Different brightness contrasts can convey different interpretations and expressions through different light and shadow expressions.

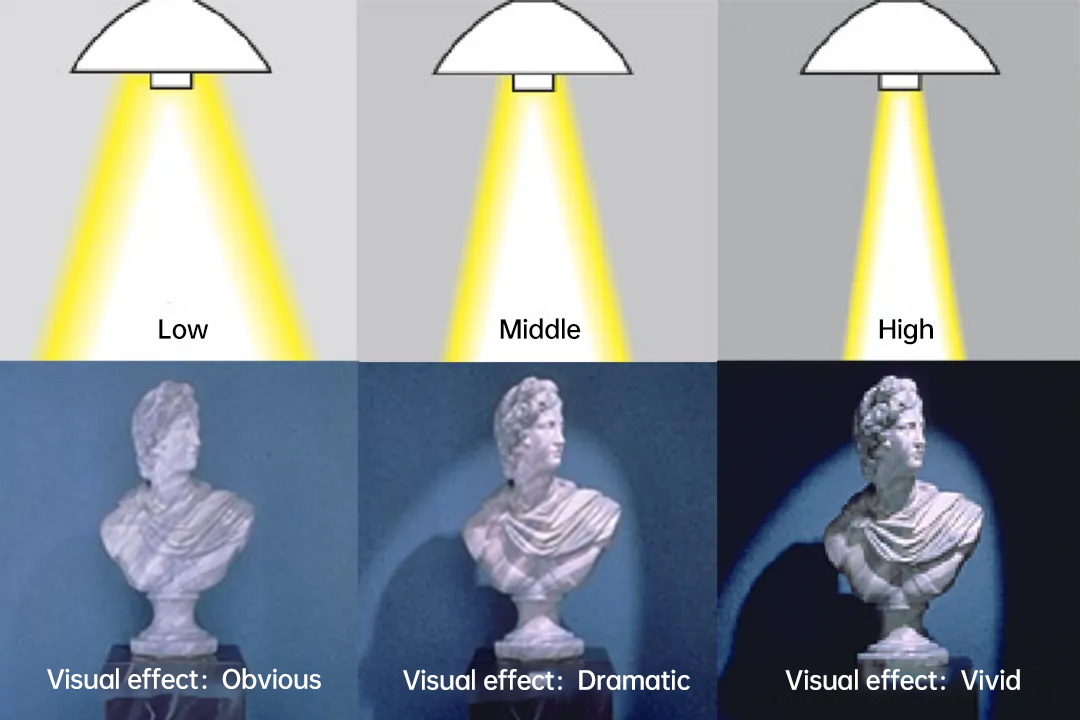

By creating a contrast with the ambient illumination, different visual effects are created based on the level of contrast:

Key applications of lighting – Color temperature

The color temperature range of physical characteristics is from 1000K to 10000K, and in practical applications, the effective application CCTs are:

Different color temperatures have varying expressive power on the illuminated object; And each display item needs to have a matching color temperature to highlight the best visual presentation due to its different materials and colors.

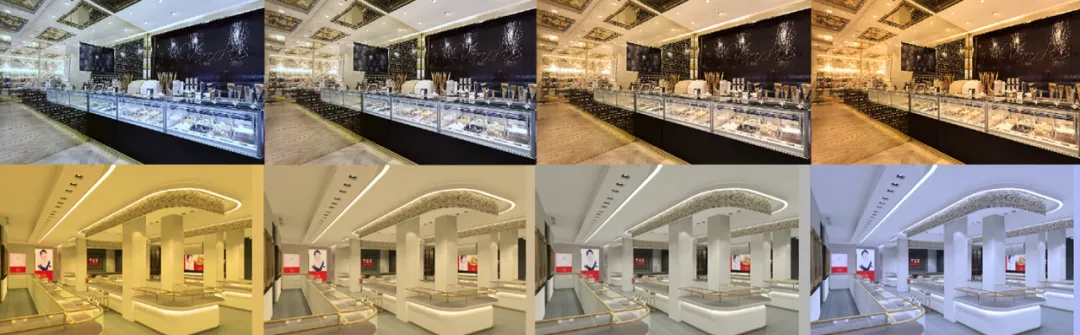

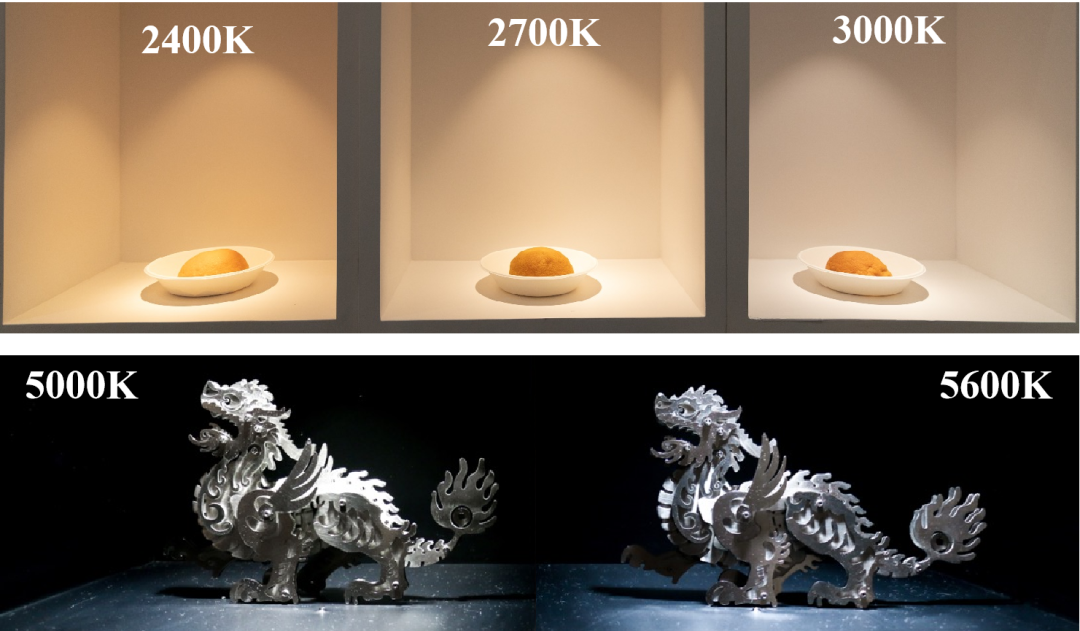

Difference of color temperature effects：

Color Temperature Application Reference：

Color Temperature Application Reference：

Key applications of lighting – color

Color is the most important way of expression from the illuminated object to the environmental space, and has developed into two important dimensions:

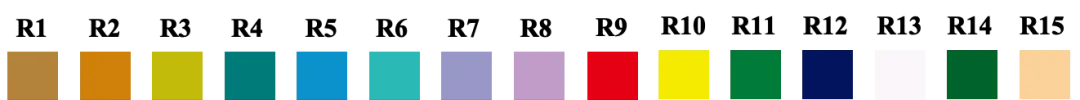

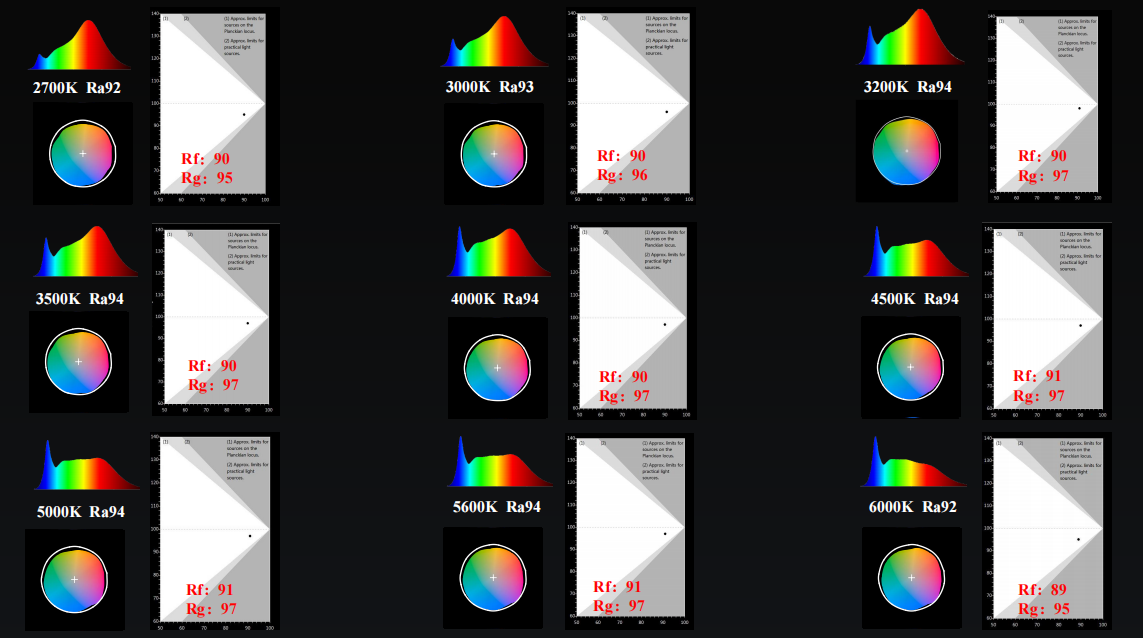

Color rendering:The key indicator for measuring color reproduction; different objects have different requirements for color expression due to their material and color.

Saturation:The key indicators for measuring color realism and saturation, the use of realism Rf and color saturation Rg, are used to contrast the illuminated object and scene space from the aspects of naturalness, fidelity, saturation, and brightness.

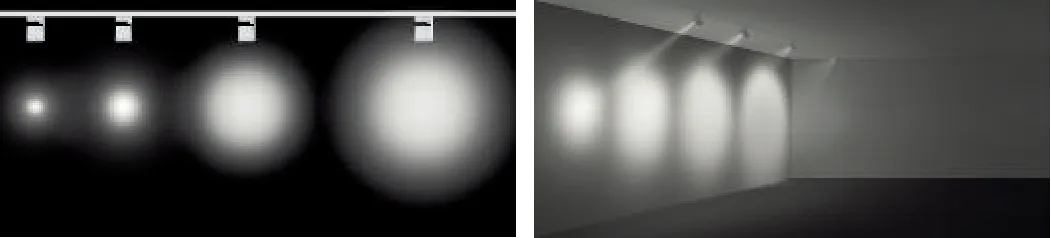

Key applications of lighting – Beam focusing:

In the application of beam focusing, the corresponding beam angle ranges are usually defined as：

    --narrow beam： < 20°

    --medium beam：20°～ 40°

    --Wide beam：> 40°

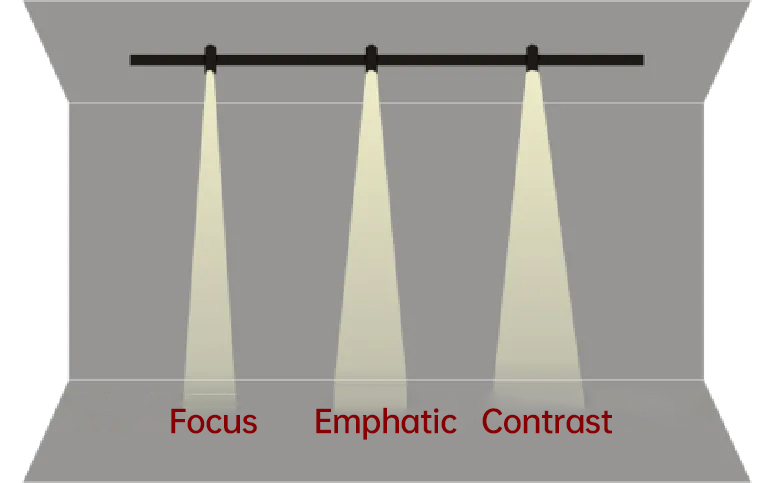

Whether it is the exhibits being photographed or the environmental space, different beam focusing techniques can form different application characteristics:

The application of commercial lighting requires reasonable and effective beam focusing and matching based on product display characteristics and environmental style positioning:

Display exhibits: Embedded focusing 15 °

Environmental Space: Embedded Performance 36 °

Wall cleaning decoration: embedded performance 25 °~36 °

From product characteristics to spectral performance:

——  Mirror aluminum, chip scale phosphor coating technology, intelligent control, spectral performance >>>>>>>>>>>>>

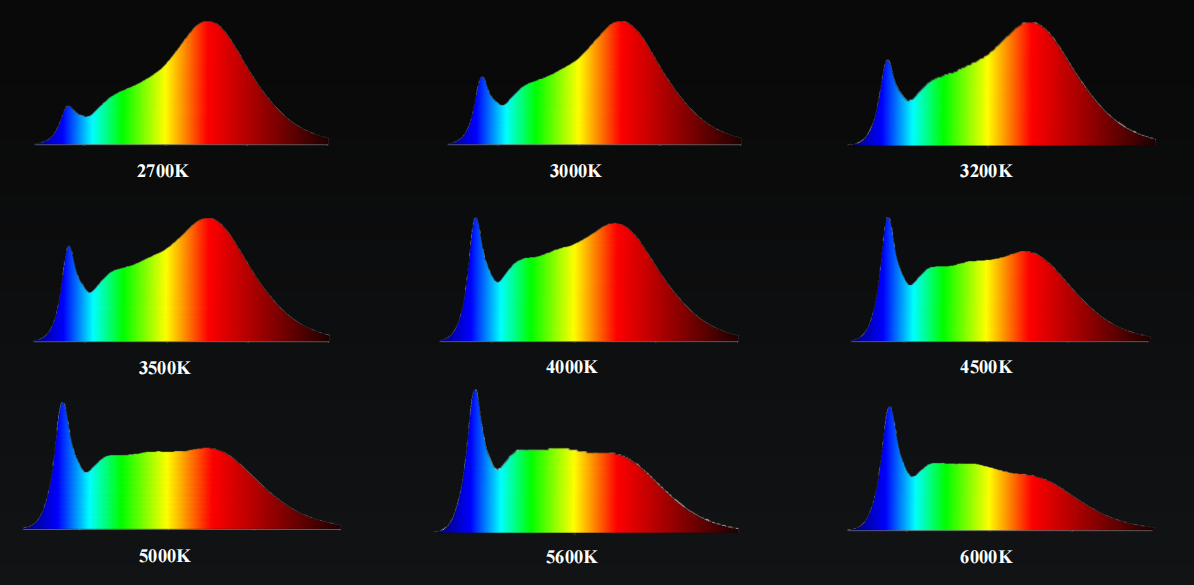

➢CCT Tunable range：2700 ~ 6000K（Ra80 / 90 / 95）；

➢Power range：6 ~ 30W

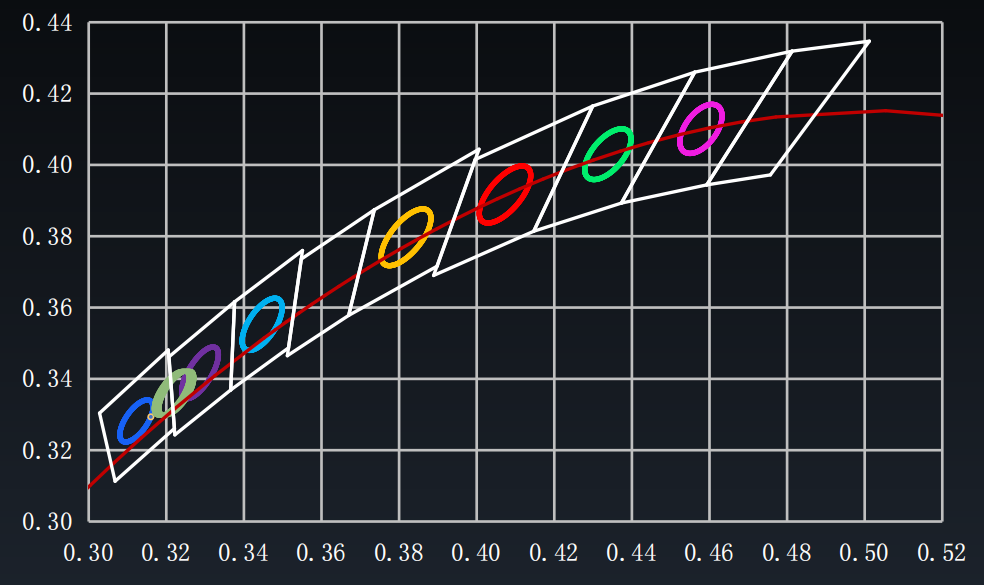

➢Latest CSC technology to ensure uniform light and color,

    the color points along black body trajectory line;

➢Compliant with WIFI, BLE, RF2.4G and other intelligent controls

     (remote control, IPAD/ mobile phone)

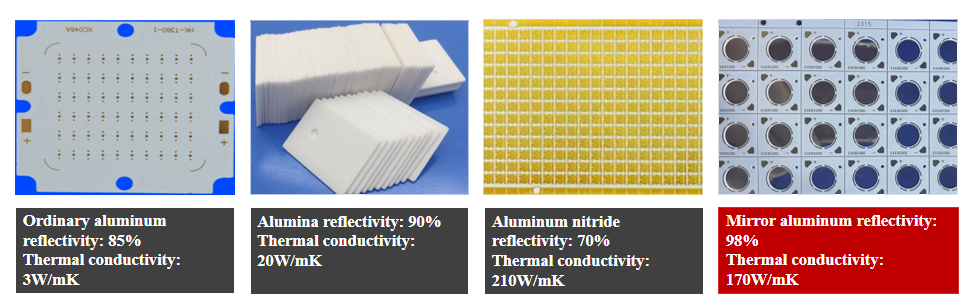

Mirror aluminum substrate

Mirror aluminum substrate is used to achieve high thermal conductivity, high light efficiency and high reliability.

The use of mirror aluminum can achieve both high reflection and high thermal conductivity.

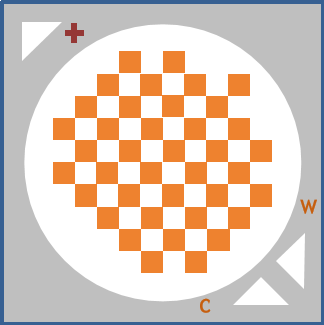

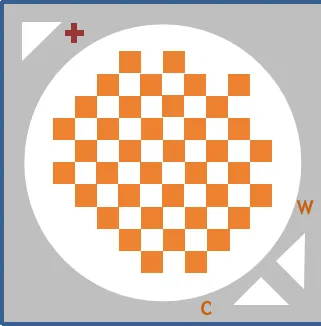

Chip scale phosphor coating technoly:

With latest chip scale phosphor coating technoly and checkered array;

Compared with the ring-shaped and strip-shaped pattens, more uniform light and more better light mixing;

More compatible to lenses and reflectors, greatly reducing the design difficulty and cost of opticals;

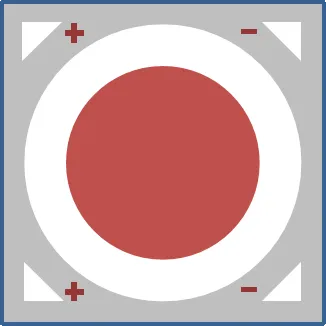

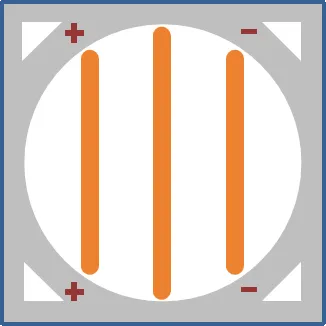

                   Circular Chip Arra                                                         Strip Chip Array

       Flip chip bonding Mosaic Array                                   Wire bonding Mosaic Chip Array

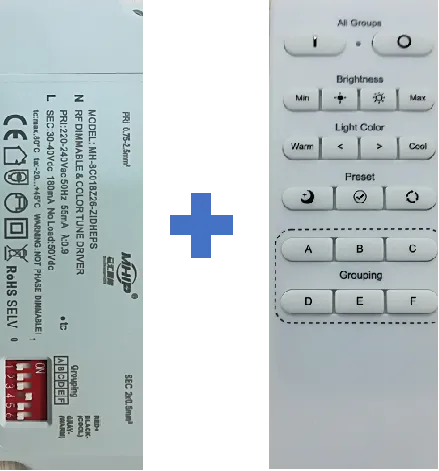

Compatible with various smart controls:

With adjustable power supply + professional optical lens, the brightness and color temperature can be controlled separately to meet the application requirements of different light environments；

Compliant with WIFI, BLE, RF2.4G and other intelligent controls .

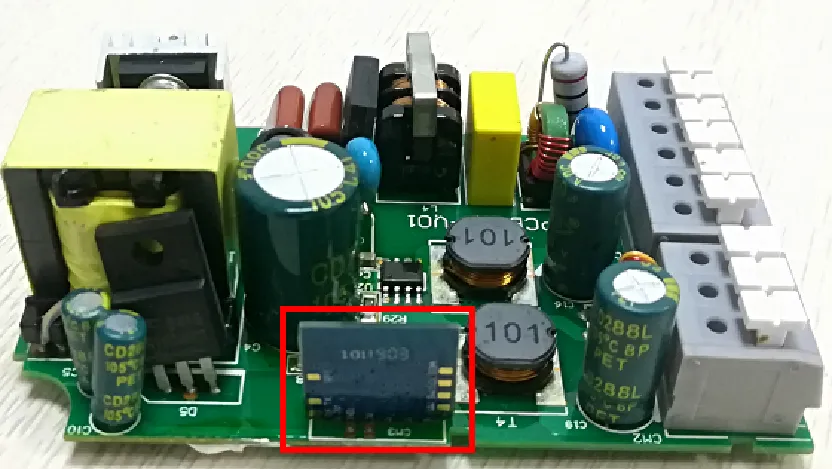

Smart chip

• 2.4G intelligent remote control and panel control

• WIFI、Bluetooth intelligent APP control

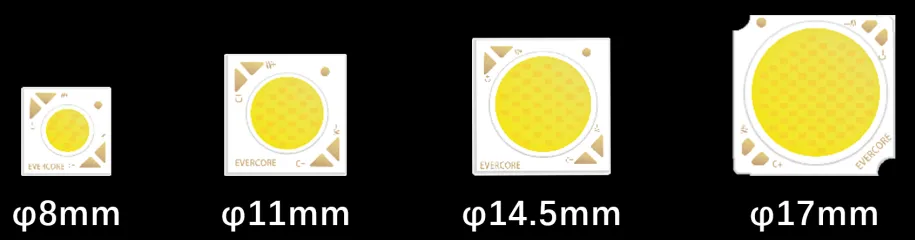

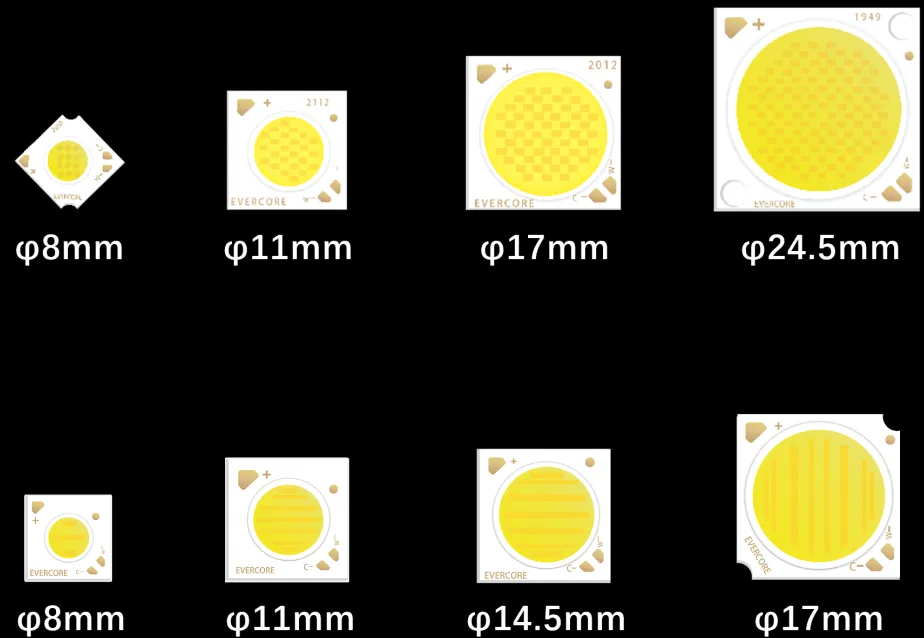

CCT Tunable COB Series Product specification

Gen7 & Gen6 Product details>>>>>>>>>>>>>

Gen7 Series

Gen6 Series
